500A 48V 0-5KGolf Carts Controller Replace Curtis 1205 / 1205M-5601 / 1205M-5603 Motor Controller Compatible with EZGO Club Car

Replaces Part Number : For Curtis 1205 / 1205M-5601 / 1205M-5603 /1205-5601 / 1205-5603 / 1205-210 / 1205-211 / 1205-201 / 1205-209 Made According to Original Products, Quality is Guaranteed,100% Tested Before Shipping.
Applicable Models : For use with Club Car DS (Years 1996-Up)
Please Refer to Your Own Part and Make Sure Your Part is 48V, 500A, 0-5K, By default, we will the controller of setting of 48V , 500A , 0-5K
Replace Curtis (1205) 500 amp, 36-48 volt long body controller with four buss bars is pre-set for 0-5K throttle. It can be adjusted with a hand held Curtis programmer #1313-3301 for use with 8 other throttle inputs. Many other parameters such as acceleration, HPD, voltage, plugging and more are also adjustable.
1 Year Warranty : We Test Each Item and 100% Ensure That Before We Ship, Before and After Sales, We Will Provide Warranty Service For Damaged Products, True Worry-Free Shopping Experience.
We supply motor controller & assemblage, programmer, contactor, accelerator (throttle), meter / gauge, and many other parts, we provide a wild range of products, corresponding each sector of electric vehicle & forklift.
Motor Controller,For Curtis 1204-410/412
For Curtis 1204-027
For Curtis 1204-015
For Curtis 1510-5201/5250
For EZ-GO 73326G02
For Curtis 1268-5403
Voltage (Volts)
48V 36V 36V 48v 36V 48V
Current (amps)
325A 275A 275A 275A 350A 400A
Throttle Type
5-0K 0-5K0-5K 0-5K

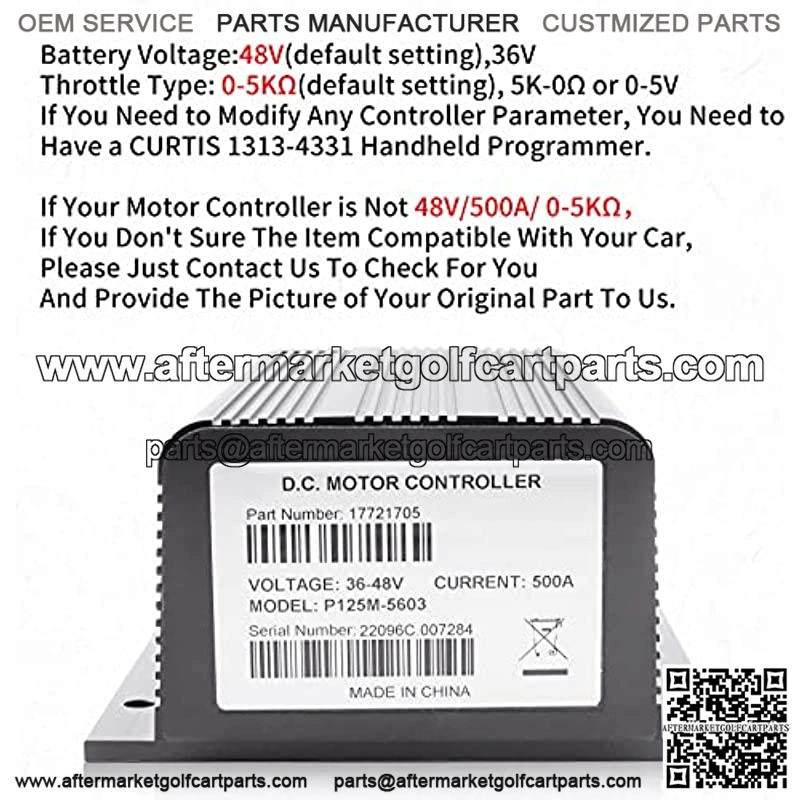

Battery Voltage:48V(default setting),36V
Throttle Type: 0-5K(default setting), 5K-0or 0-5V
If You Need to Modify Any Controller Parameter, You Need to Have a CURTIS 1313-4331 Handheld Programmer.
If Your Motor Controller is Not 48V/500A/ 0-5K
If You Don’t Sure The Item Compatible With Your Car,
Please Provide The Picture of Your Original Part To Us.
Key Features: For CURTIS Model 1205M-5603 Norminal Battery Voltage (Volts): 48V (default setting) or 36V1 Minute Current Rating (amps): 5005 Minute Current Rating (amps): 3501 Hour Current Rating (amps): 200Plug Braking (A2 Busbar): YesPWM operating frequency: 15.6 kHzLogic input current: < 2 mAStatus LED output current (max.): < 2 mATen throttle types can be used with these controllers:Type 0: 2-wire potentiometer, 05kType 1: 2-wire potentiometer, 5k0 Type 2: single-ended 05V input Type 3: 2-wire potentiometer, 4.6k0 Type 4: 2-wire potentiometer, 5.5k0 Type 5: 2-wire potentiometer, 1k0 Type 6: ITS input Type 7: single-ended 6.310.6 V input Type 8: single-ended 612 V input Type 9: single-ended 3-wire potentiometer, 05k
