36V 500A 0-5K?? Golf Carts Controller Replace Curtis 1205 1204 Motor Controller Compatible with EZGO Club Car 1205-117
36V 500A 0-5K?? Golf Carts Controller Replace Curtis 1205 1204 Motor Controller Compatible with EZGO Club Car 1205-117
Spread The Love
Description
Replaces Part Number : For Curtis 1205 / For Curtis 1204 / 1205-117 / 1205-101 / 1205-112 / 1205-113 / 1205-121 / 1205-103, Made According to Original Products, Quality is Guaranteed, 100% Tested Before Shipping.
Applicable Models : For use with Club Car DS (Years 1991-Up)
Please Refer to Your Own Part and Make Sure Your Part is 36V, 500A, 0-5K?? , By default, we will the controller of setting of 36V , 500A , 0-5K??
Replace Curtis (1205) 500 amp, 36-48 volt long body controller with four buss bars is pre-set for 5K-0 throttle. It can be adjusted with a hand held Curtis programmer #1313-3301 for use with 8 other throttle inputs. Many other parameters such as acceleration, HPD, voltage, plugging and more are also adjustable.
1 Year Warranty : We Test Each Item and 100% Ensure That Before We Ship, Before and After Sales, We Will Provide Warranty Service For Damaged Products, True Worry-Free Shopping Experience.
We supply motor controller & assemblage, programmer, contactor, accelerator (throttle), meter / gauge, and many other parts, we provide a wild range of products, corresponding each sector of electric vehicle & forklift.
Motor Controller,For Curtis 1205-5603
For Curtis 1204-027
For Curtis 1204-015
For Curtis 1204-410/412
For EZ-GO 73326G02
For Curtis 1268-5403
Voltage (Volts)
48V 36V 36V 48V 36V 48V
Current (amps)
500A 275A 275A 325A 350A 400A
Throttle Type
0-5K?? 0-5K?? 0-5K?? 5K-0??
0-5K??

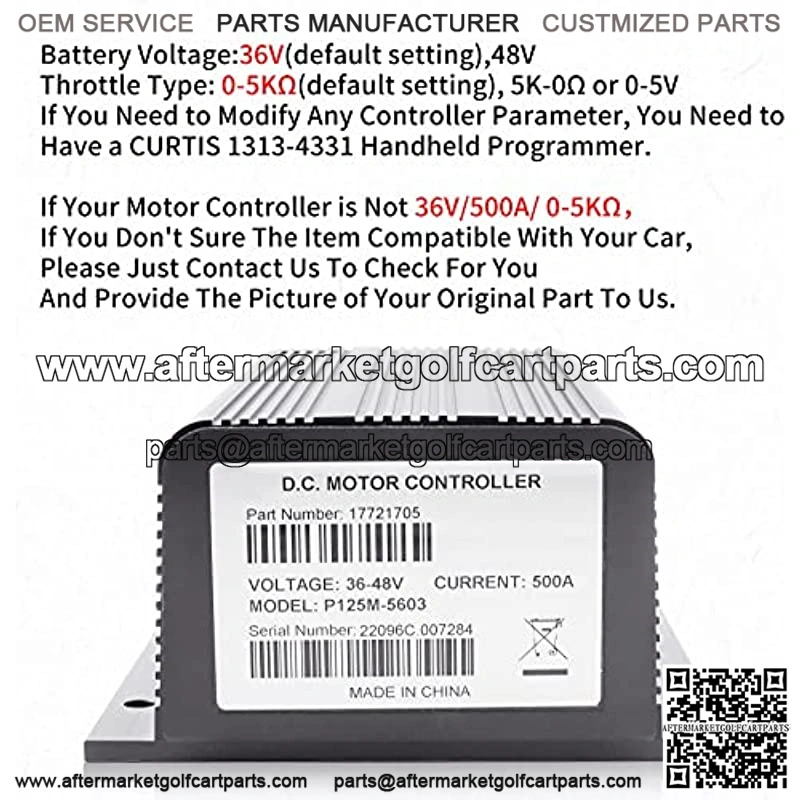

Battery Voltage:36V (default setting),48V
Throttle Type: 0-5K?? (default setting), 5K-0?? or 0-5V
Current Rating (amps): 500A
If You Need to Modify Any Controller Parameter, You Need to Have a CURTIS 1313-4331 Handheld Programmer.
If Your Motor Controller is Not 36V/500A/ 0-5K????
If You Don’t Sure The Item Compatible With Your Car,
Please Provide The Picture of Your Original Part To Us.
Key Features: For CURTIS Model 1205M
Norminal Battery Voltage (Volts): 36V (default setting) or 48V1 Minute Current Rating (amps): 5005 Minute Current Rating (amps): 3501 Hour Current Rating (amps): 200Plug Braking (A2 Busbar): YesPWM operating frequency: 15.6 kHzLogic input current: < 2 mAStatus LED output current (max.): < 2 mATen throttle types can be used with these controllers:Type 0: 2-wire potentiometer, 0?C5k?? Type 1: 2-wire potentiometer, 5k???C0 Type 2: single-ended 0?C5V input Type 3: 2-wire potentiometer, 4.6k???C0 Type 4: 2-wire potentiometer, 5.5k???C0 Type 5: 2-wire potentiometer, 1k???C0 Type 6: ITS input Type 7: single-ended 6.3?C10.6 V input Type 8: single-ended 6?C12 V input Type 9: single-ended 3-wire potentiometer, 0?C5k??
